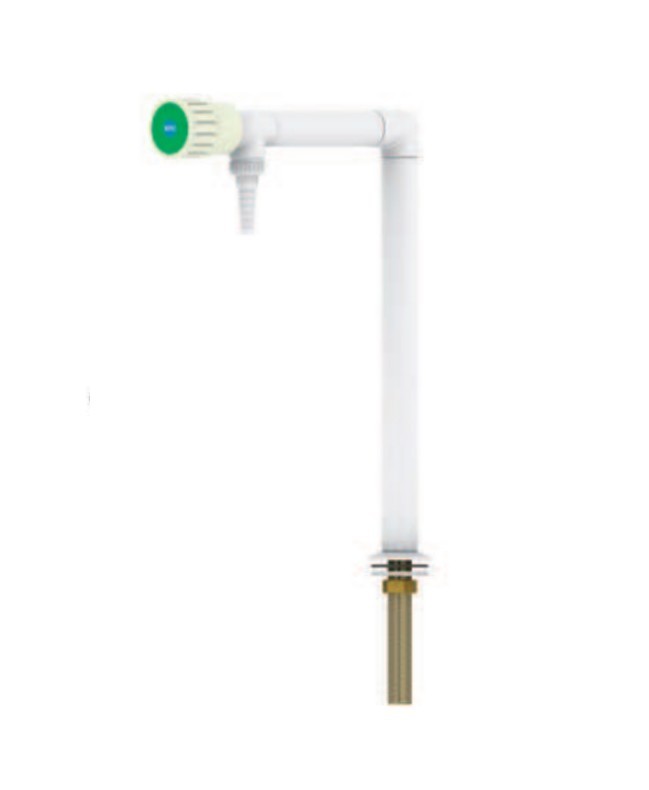

Robinet eau sur colone 90
WATER 11062.1
BENCH ”L” COLUMN
Application :
Bench mounting
Details
- Waterflow around 17l/min at 3 Bars pressure
- Test pressure: 9 Bars/air
- Max working pressure: 10 Bars
Surface protection :
Epoxy powder coating RAL 7035
Materials:
- Brass
- Handle in PP
Heaswork sealing :
EPDM temperature working range: 0−70˚
CERAMIC temperature working range: 0−70˚
Connection tap:
Male thread G3/8” or G1/2”
Standard and norms :
- EN13792:2000
- DIN12898
- DIN12918
- ISO228/1
Options
- Lever model LEV001/STI instead of the handle (to use only with ceramic headwork)
- With chemical nickel plating 17 microns inside
Weight
1956gr
